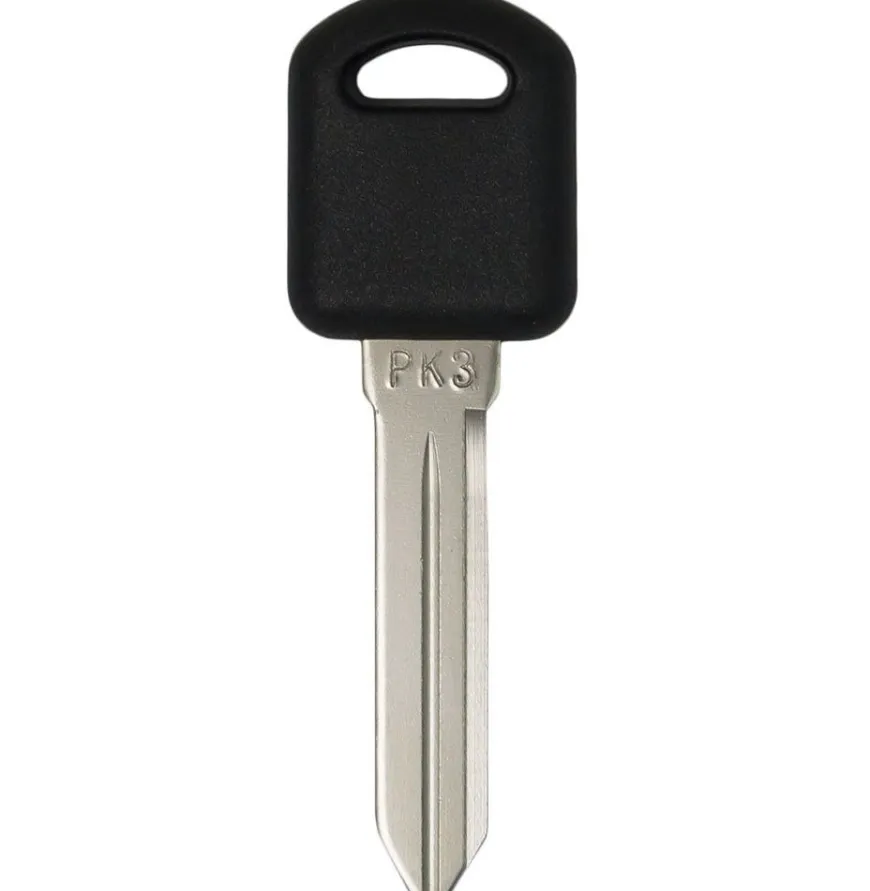

2005 Saturn Relay transponder key blank by Car & Truck Remotes

• One Transponder chip key for 2005 Saturn Relay – brand new, aftermarket (NO GM logo).
• This key must be professionally cut when received by a local automotive locksmith or hardware store. Proof of ownership for your vehicle will most likely be required (like title, registration, insurance card) to make sure you are the owner or authorized user. You can program this key at home using your existing working key.
• Price above is quoted for one replacement ignition key.
• WE DO NOT CUT OR PROGRAM KEYS AT OUR FACILITY. Please contact your car locksmith for pricing.
• NOTE: This ignition key has a chip hidden inside of the plastic head. It is a part of your automobile security system to prevent theft. Therefore, you MUST get it both: cut and programmed. Cutting only will NOT allow you to start the engine.

More Information:

• Replacement GM Ignition Key B97
• Chip ID: MEGAMOS 13
• Aftermarket replacement for the following:
• Strattec: 690552, 690554
• OEM: 88891799, 89024245, 15289762
• A1: B97SP
• Bianchi: BB97PT
• Hata: B-97-HPT
• Ilco: B97-PT
• JET: B97-PHT
• Hillman: 86660
• Test Key: B93
• Code Series: S000A-S711K
• Groove: 75
• Reusable: Yes

This key also fits:

• 97 98 99 00 01 02 03 04 05 Buick Park Avenue
• 05 06 Buick Terraza
• 05 06 Chevrolet Uplander
• 99 00 01 02 03 04 05 Chevrolet Venture
• 99 00 01 02 03 04 05 06 Pontiac Montana
• 05 06 07 Saturn Relay

Programming Instructions:

ALL KEYS LOST/MISPLACED
1. Insert the new cut key into ignition cylinder and turn it to the ON position. The security light on the dash will light up and stay on for about ten minutes. When the security light goes out, you have one minute to start the next step.
2. Turn the ignition cylinder to OFF and then back to the ON position. The security light on the dash will illuminate and stay on for ten more minutes. When the security light goes out, you have one minute to start the next step.
3. Turn the ignition cylinder to OFF and then back to the ON position. The security light on the dash will illuminate and stay on for ten more minutes.
4. After the security light has gone off for the third time, turn key off and remove from ignition. The key is now programmed and all other keys have been erased.
5. Insert key and start vehicle to test key.

TO ADD AN EXTRA KEY (you must have at least one working key)

1. Insert an existing programmed working key into the ignition cylinder.
2. Turn ignition to the ON position for 5 seconds, then back to OFF position.
3. Remove the existing key and within 5 seconds insert new key and turn it to the ON position for 5 seconds.
4. Turn key OFF then back to ON. The key is now programmed. Start vehicle to test the key.
