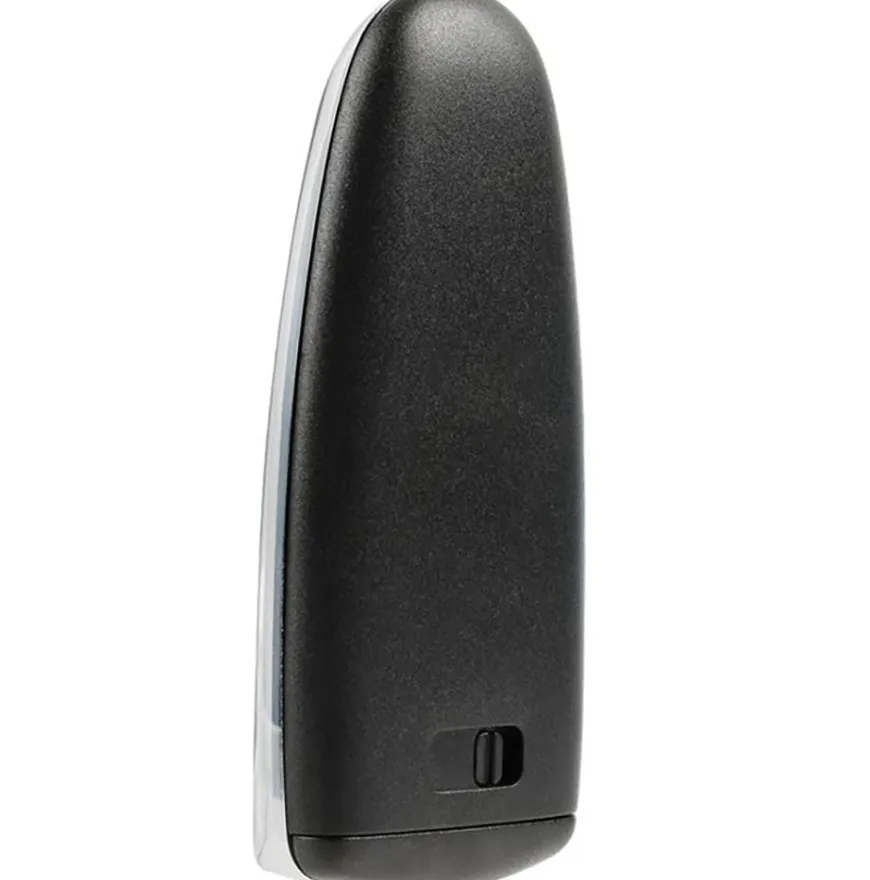

2012 Ford Edge Smart Remote Key Fob w/ Engine Start by Car & Truck Remotes

• One 2012 Ford Edge Smart Keyless Entry Remote with Remote Engine Start – brand new, aftermarket (it does NOT have a logo on the back) with uncut emergency insert key included.
• If you have two working remotes for your car, you can program this new key fob by yourself (scroll down for the programming instructions). If you do not have two working transmitters, this smart remote must be professionally programmed when received by a local automotive locksmith . We do not recommend going to a dealer, as they may decline programming an aftermarket remote for you. Emergency insert key also needs to be cut.
• This transmitter will work on vehicles equipped with Push to Start / Stop button on the dashboard and proxy keyless entry system.
• Price above is quoted for one replacement keyless entry unit including the emergency key.
• WE DO NOT CUT OR PROGRAM REMOTE KEYS AT OUR FACILITY. Please contact your car locksmith for pricing.

More Information:
This aftermarket remote will replace original OEM:

• Ford Part Numbers: 164-R8092, 164R8092, 164-R8094, 164R8094
• FCC ID: M3N5WY8609
• Numbers on the back of this remote:
• FCC: 2AOKM-FD10
• IC: 24223-FD10
• Model: RT-FD105
• Frequency: 315 MHz
• Battery: CR2032
• Emergency insert key, same as: 164-R8041, 164R8041, 5912345
• Reusable: Yes
• On Board Programming: Yes, two working remotes required

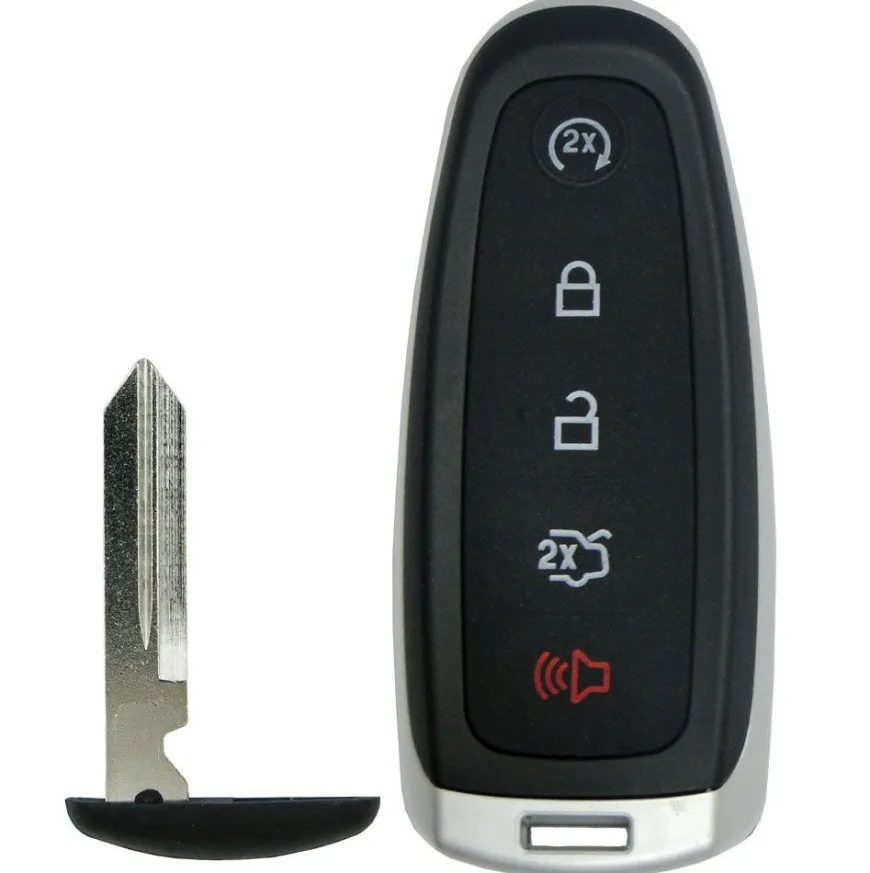

• 5 Buttons: Remote engine start, Lock, Unlock, Trunk release, Panic alarm

This remote also fits:

11 12 13 14 15 Ford Edge
17 18 19 Ford Escape
15 16 17 Ford Expedition
11 12 13 14 15 Ford Explorer
13 14 15 16 17 18 19 Ford Flex
15 16 17 18 19 Ford Focus
13 14 15 16 17 18 19 Ford Taurus
13 14 15 16 17 Lincoln Navigator
13 14 15 16 Lincoln MKS
13 14 15 16 17 18 19 20 Lincoln MKT
11 12 13 14 15 Lincoln MKX

DIY PROGRAMMING INSTRUCTIONS:

You must have two previously programmed intelligent access keys inside the vehicle and the new unprogrammed intelligent access keys readily accessible. If two previously programmed keys are not available, you must take your vehicle to an automotive locksmith to have the spare key(s) programmed.
Ensure that the vehicle is off before beginning this procedure. Ensure that all doors are closed before beginning this procedure and that all doors remain closed throughout the procedure. Perform this procedure exactly as described below, and perform all steps within 30 seconds of starting the sequence. If any steps are performed out of sequence, stop and wait for at least one minute before starting again.
1. Place the new unprogrammed intelligent access key in the pocket inside of the center console.
2. Press the driver or passenger power door unlock control three times.
3. Press and release the brake pedal one time.
4. Press the driver or passenger power door lock control three times.
5. Press and release the brake pedal one time. The indicator on the Start/Stop button should begin to rapidly flash, indicating that programming mode has been entered and two programmed intelligent access keys have been detected in the vehicle.
6. Within one minute, press the Start/Stop button. A message will be displayed on the message center indicating that the new intelligent access key was programmed. If four intelligent access keys have already been programmed to your vehicle, you cannot program anymore and the message MAX # OF KEYS LEARNED will be displayed on the message center.
7. Remove the intelligent access key from the center console pocket and press the unlock button on the newly programmed intelligent access keys to exit programming mode.
8. Verify that the remote entry functions operate (press lock then unlock, making sure you end in unlock) and that the vehicle starts with new intelligent access key. If the intelligent access key has been successfully programmed, it can be used to activate the intelligent access with push button Start feature and can be used to start your vehicle.
